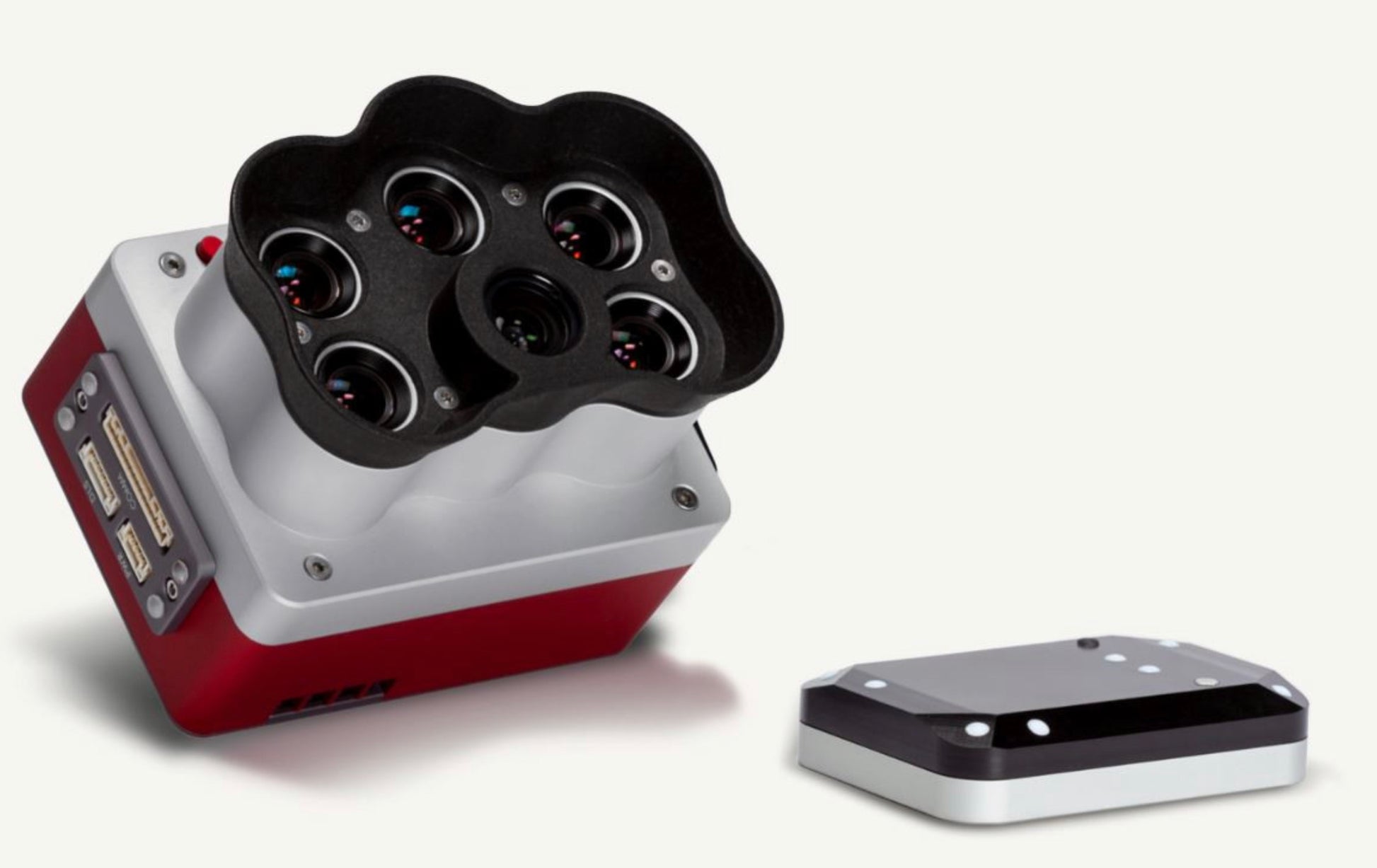

Micasense RedEdge-P Multispectral Kit

Introducing RedEdge-P: The ultimate solution for high-res RGB and multispectral data

\nThe RedEdge-P is the rugged, high-quality, powerful multispectral sensor you’ve come to trust, nowwith a high-resolution panchromatic band for pan-sharpened output resolutions of 2cm (at 60m)-twice the ground resolution of the industry-standard RedEdge-MX. It is asingle camera solution that captures calibrated high-resolution multispectral and RGB imagery, with an optimized FOV andcapture rate for efficient flights. \n \nThis solution seamlessly integrates a high-resolution all-colorimager with synchronized multispectral imagers to enable pixel-aligned outputs at previously unattainable resolutions while maintaining the efficiency and reliability of the RedEdge legacy. Rawdata from RedEdge-P is open for processing using the standard household softwares in the industry. \n

Specifications

Weight: 300g (10.6 oz.) RedEdge-P + DLS 2?

Dimensions: 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)?

External power: 7.0 V-25.2 V?

Spectral bands:Blue, green, red, red edge, near-IR(global shutter, narrowband)?

Wavelength (nm): Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)?

RGB output: 5.1 MP (global shutter, aligned with all bands)*?

Ground sample distance:o7.7cm per pixel (per MS band) at 120m AGLo3.98cm per pixel (panchromatic band) at 120m AGL?

Capture rate: 2-3 captures per second raw DNG

Interfaces: 4 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 portfor WiFi, serial, 10/100/1000 ethernet, and CF Express Storage.

Field of view:o49.6° HFOV x 38.3° VFOV (MS)o44.5° HFOV x 37.7° VFOV (PAN)

Triggering options: Timer mode, overlap mode, external trigger mode (PWM, GPIO,serial and Ethernet options), manual capture mode?Heat: 0-40C ambient (no airflow); 0-50C ambient with airflow >0.5m/s* with appropriate post-processing

Kit Contents

•

  • RedEdge-P sensor

  • DLS 2 with embedded GPS

  • Calibrated Reflectance Panel (CRP 2)

  • USB WiFi dongle

  • Lens cover

  • Necessary integration cables

  • Assorted mounting hardware

  • CFexpress card

  • CFexpress card reader

  • Hard Carrying Case

  • Quick StartGuide
