FLIR Zenmuse XT2 640 Thermal Imaging Camera (25mm Lens, 30 Hz)
FLIR Zenmuse XT2 640 Thermal Imaging Camera (25mm Lens, 30 Hz)
Regular price
$10,700.00 USD
Regular price
Sale price
$10,700.00 USD
Unit price
/
per
Couldn't load pickup availability

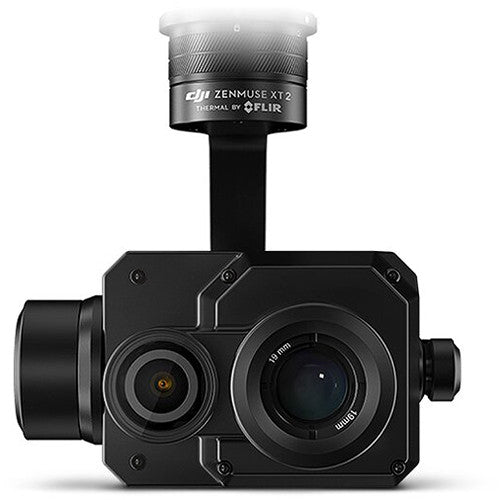

FLIR Zenmuse XT2 640x512 Thermal Imaging Camera (25mm Lens, 30 Hz) FZXT2A25FR
FLIR FZXT2A25FR Offers
Features
- High-resolution thermal and color imaging: The FLIR radiometric thermal sensor and 4K visual camera integrate seamlessly with DJI's powerful enterprise drone platforms to increase efficiency
- IP44 rated rugged design: Combining the XT2's weather-resistant dual sensor with the M200 allows pilots to fly in rain, snow, smoke, and fog
- FLIR MSX multi-spectral dynamic imaging: MSX intelligent image processing embosses visible image edge details onto thermal images for enhanced perspective and safety
Applications
- Infrastructure monitoring
- Energy inspections
- Firefighting
- Search and rescue
FLIR FZXT2A25FR Specifications
| Imaging and Optical | |
| Angular Vibration Range | ± 0.01° |
| CMOS | CMOS, 1/1.7", Resolution: 12 M |
| Digital Zoom | Thermal Camera: 640×512: 1x, 2x, 4x, 8x 336×256: 1x, 2x, 4x \nVisual Camera: 1x, 2x, 4x, 8x |
| FPA & Digital Video Display Formats | 640 × 512; 336 × 256 |
| Full Frame Rate | 30 Hz |
| Lens | Prime lens, Focus at 5 mm, FOV 90° × 65° Focus at 8 mm, FOV 57.12° × 42.44 |
| Sensitivity [NEdT] | < 50 mk at f/1.0 |
| Still Photography Modes | Single shot burst shooting (3/5 frames) \nInterval (2/3/4/7/10/15/20/30 sec) |
| Video Format | Thermal: 8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ \nVisible: MOV, MP4 |
| Photo Format | Thermal Camera: JPEG, TIFF, R-JPEG \nVisible Camera: JPEG |
| Maximum Controllable Speed | Tilt: 90°/s \nPan: 90°/s |
| Video Resolution | 4K Ultra HD: 3840×2160 29.97p \nFHD: 1920×1080 29.97p |
| Pan-Tilt | |
| Controllable Range | Tilt: +30° to -90° \nPan: ±320° |
| Mechanical Range | Tilt: +45° to -130° \nPan: ±330° \nRoll: -90° to +60° |
| General Specifications | |
| Exportable Frame Rates | < 9 Hz |
| Pixel Pitch | 17 µm |
| Scene Range | High Gain: -13 to 275°F (-25 to 135°C) \nLow Gain: -40 to 1022°F (-40 to 550°C) |
| Spectral Band | 7.5-13.5 µm |
| Dimensions | 4.8 x 4.4 x 5" (123.7 × 112.6 × 127.1 mm) |
