DJI Zenmuse XT2 Dual 4K & FLIR Thermal Camera 640x512 30Hz 19mm

DJI Zenmuse XT2 Dual 4K & FLIR Thermal Camera 640x512 30Hz 19mm

$8,750.00 USD
$8,750.00 USD
Sale Sold out
SKU: CP.HY.00000087.01
\n

Brand New and Hasn’t Been Used… \nSuper Special Deal!!!!

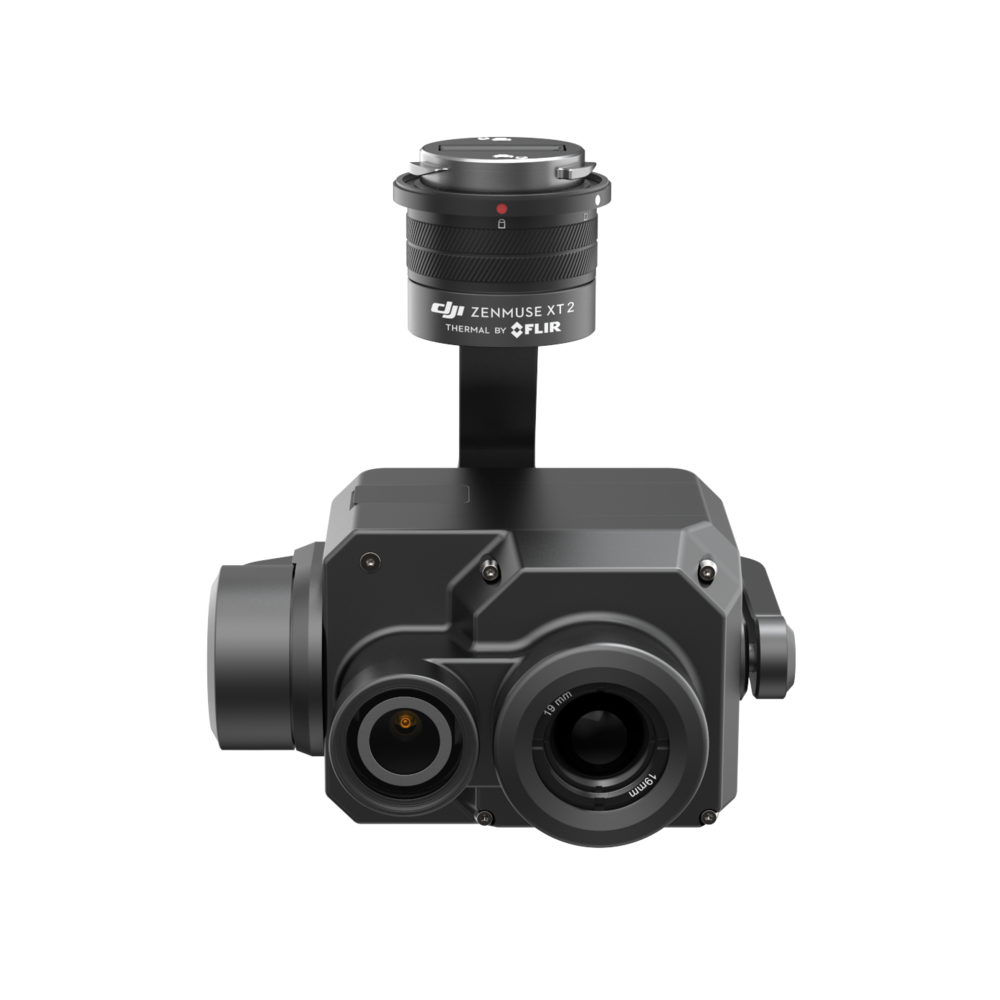

\nDJI Zenmuse XT2 Dual 4K & FLIR Thermal Camera \n \nResolution:640x512 Refresh Rate:30Hz Lens Focal Length: 19mm \n \nThe DJI Zenmuse XT2 combines a high-resolution FLIR Tau 2 thermal sensor together with a 4K visual camera sensor, in one 3-axis stabilized camera body. The XT2 has proven itself to transform aerial data into powerful insights that save time, money and lives. The XT2 features a rugged design that is IP44 rated, meaning that with DJI's Matrice 200 series pilots are able to fly in rain, snow, smoke and fog. \n

The Most Robust Dual-Sensor Thermal Solution on the Market

\n  \n
\n \n \n \n \n \n \n \n \n \n
\n

12 MP

\nVisual Sensor		 \n

30 Hz

\nMax Thermal Frame Rate		 \n

IP44

\nIngress Protection		 \n

<50 MK

\nThermal Sensitivity (NEDT)
\n
\n  \n
\n \n \n \n \n \n \n \n \n
\n

\n

Temp Alarm

\nDon’t miss a thing with instant notifications when object temperatures exceed pre-set parameters.		 \n

\n

Heat Track

\nCapture the most critical information by automatically locking the XT2 onto the hottest object in view.		 \n

\n

FLIR MSX®

\nQuickly interpret data with details from the visual image overlaid on the thermal data stream.
\n
\n  \n
\n \n \n \n \n \n \n \n \n \n \n
\n

\n

Temp Check

\nTap a point or select an area for real-time temperature measurements.		 \n

\n

Quick Track

\nSelect an object to lock the XT2 onto it, simplifying missions in complex environments.		 \n

\n

Isotherms

\nFocus on a specific temperature band to identify what’s important.		 \n

\n

Color Palettes

\nAdjust the colors applied to the thermal data to easily interpret what’s happening.		 \n

\n

PiP Options

\nOptimize how you view the thermal and visual feeds - side by side, overlapping and more.
\n
\n  \n

Applications

\nSee the unseen. FLIR thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more. \n
\n
\n
\n
Public Safety
\n
Inspection
\n
HazMat
\n
\n
\n
\n
\n
\n
\n
\n
\n \nFirefighters can quickly identify hot spots with the ability to directly overlay thermal data on the visual overview and fine tune isotherm settings. While law enforcement can obtain heat signatures of subjects beyond their standard vision. \n \n
\n
\n \nObserve temperature differentials to locate damaged solar panels with little effort by adjusting the Temp Alarm settings to notify you of temperatures outside the norm, or use the XT2's palettes to observe insulation abnormalities. \n \n
\n
\n \nDiscover if a hazardous container is full and identify the substance inside with one image using FLIR MSX thermal and visual image overlaid in one picture). Keep your distance with aerial thermal imagery. \n \n
\n
\n
\n  \n
CONFIGURATIONS
\n

Zenmuse XT2 Configurations

\nResolution   Refresh Rate   Lens Focal Length   SKU \n \n640                    30Hz                    13mm                              CP.HY.00000086.01 \n \n640                    30Hz                    19mm                              CP.HY.00000087.01 \n \n640                    30Hz                    25mm                              CP.HY.00000083.01 \n \n640                    9Hz                      13mm                               CP.EN.00000016.01 \n \n640                    9Hz                      19mm                               CP.EN.00000015.01 \n \n640                    9Hz                      25mm                               CP.EN.00000014.01 \n \n336                    30Hz                    9mm                                 CP.HY.00000088.01 \n \n336                    30Hz                    13mm                               CP.HY.00000084.01 \n \n336                    30Hz                    19mm                               CP.HY.00000085.01 \n \n336                    9Hz                      9mm                                 CP.EN.00000025.01 \n \n336                    9Hz                      13mm                               CP.EN.00000017.01 \n \n336                    9Hz                      19mm                               CP.EN.00000026.01 \n

Zenmuse XT2 Configuration Specs

\n \n
