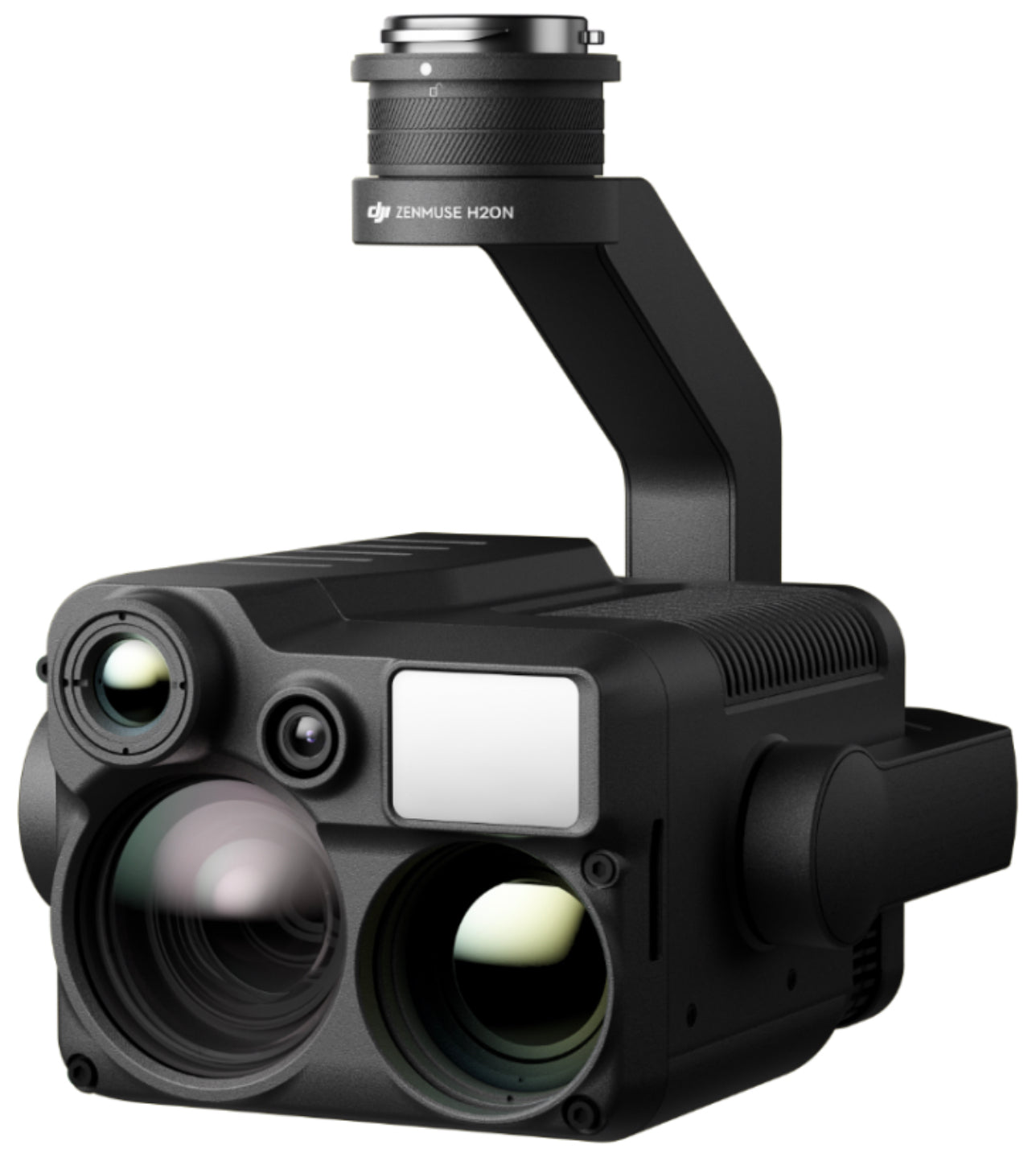

DJI Zenmuse H20N Worry-Free Plus Combo

Infrared Zoom

Dual Thermal Cameras

Resolution: 640×512

2x Zoom (Equivalent Focal Length: 53 mm) 8x Zoom (Equivalent Focal Length: 196 mm)

General

• Product Name: Zenmuse H20N

• Dimensions: 178x135x161 mm

• Weight: 878±5 g

• Protection Rating: IP44

• Laser Safety: Class 1M (IEC 60825-1:2014)

• Supported Aircraft: Matrice 300 RTK


Gimbal

• Angular Vibration Range: ±0.01°

• Mount: Detachable


Zoom Camera

• Sensor: 1/1.8" CMOS; Effective Pixels: 4M

• Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) | Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night) | Focus: 1 m to ? (wide); 8 m to ? (tele)


Wide Camera

• Sensor: 1/2.7" CMOS; Effective Pixels: 2M

• Lens: DFOV: 73.6° | Focal Length: 4.5 mm (equivalent: approximately 29 mm) | Aperture: f/2.8 | Focus: 1 m to ?


Tele Infrared Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer

• Lens: DFOV: 12.5° | Focal Length: 44.5 mm (equivalent: approximately 196 mm) | Aperture: f/1.2 | Focus: 45 m to ?


Wide Infrared Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer

• Lens: DFOV: 45.5° | Focal Length: 12 mm (equivalent: approximately 53 mm) | Aperture: f/1.0 | Focus: 5 m to ?


Laser Range Finder

• Wavelength: 905 nm

• Maximum Power: 3.5 mW

• Single Pulse Width: 6 ns

• Measuring Accuracy: ± (0.2 m + target distance x 0.15%)

• Measuring Range: 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)


Storage

• Supported microSD Cards: Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB

• Supported File System: exFAT


Environment\n \nThe Zenmuse H20N's zoom and wide-angle cameras are equipped with starlight sensors, which enhance its performance. When you combine this with twin zoom thermal cameras and a laser rangefinder, you have a highly adaptable hybrid payload that can handle any situation. Combine these with the Matrice 300 and you will be able to see beyond the cover of darkness. \n \nSensors have been upgraded in a variety of dimensions. \n

• Operating Temperature: -20° to 50° C (-4 to 122°F)

• Storage Temperature: -20° to 60° C (-4 to 140°F)
• \n \nWorry-free Plus \n \nWith a coverage limit equivalent to the product's value, an unlimited \nnumber of free repair can be offered within one year after the product \nis activated and includes 1 standard maintenance service. \n \nWorry-free Basic \n \nUp to two paid replacements can be offered within one year after the \nproduct is activated. In addition, it also comes with 1 standard \nmaintenance service. \n \nWhat's the difference between the combos? \n \nCompare to standard Zenmuse H20N Combo, Zenmuse H20N Worry-Free Combo covers accidental damage such as crashing, water damage, or signal interference. \n \nThe Worry-Free Basic Combo provides 2 paid replacement within one year after the product is activated.* \n \nThe Worry-Free Plus Combo provides coverage limit equivalent to the product's value. An unlimited number of free repair can be offered within one year after the product is activated. \n \n* The replacement products are brand-new or equivalent to brand-new products in performance and reliability. \n \n** The first replacement fee is $810 / 1040 € / £860, the second replacement is $935 / 1150 € / £975.
